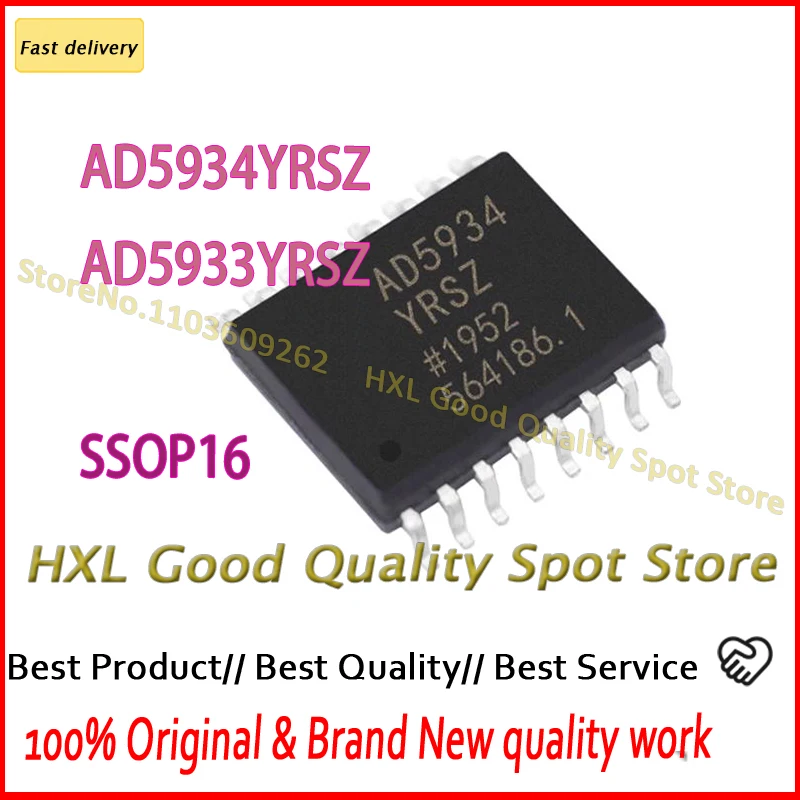

AD5933/AD5934 Signal Generator ICs
$ 10.26 🇺🇸
The Analog Devices AD5933 and AD5934 are Direct Digital Synthesis (DDS) based signal generator integrated circuits (ICs) designed for arbitrary waveform generation. These devices are optimized for applications including impedance spectroscopy, sensor conditioning, and frequency response analysis.
Key Features & Benefits
- Integrated DDS for frequency generation
- Programmable output amplitude
- Suitable for impedance spectroscopy
- On-chip temperature sensor
Frequently Asked Questions
What are the primary applications for the AD5933/AD5934 ICs? These ICs are primarily used for impedance spectroscopy, sensor conditioning, and frequency response analysis due to their programmable signal generation capabilities.
What is the output resolution of the AD5933/AD5934? The AD5933 and AD5934 feature a 12-bit DAC for output signal generation, providing high resolution for precise waveform control.
What package type do these signal generator ICs come in? The AD5933 and AD5934 are typically available in a 16-lead TSSOP package, suitable for surface-mount assembly.
Can these ICs generate arbitrary waveforms? Yes, the AD5933/AD5934 are capable of generating arbitrary waveforms through their Direct Digital Synthesis (DDS) architecture.
📋 Technical Specifications
